The global display market is poised to expand from $265.5 billion in 2024 to $600 billion by 2034 (source: Market.us), driven by advancements like BOE’s UB Cell Gen.3 and ADS Pro. These technologies harness AI to redefine visual performance, energy efficiency, and adaptability across diverse environments.

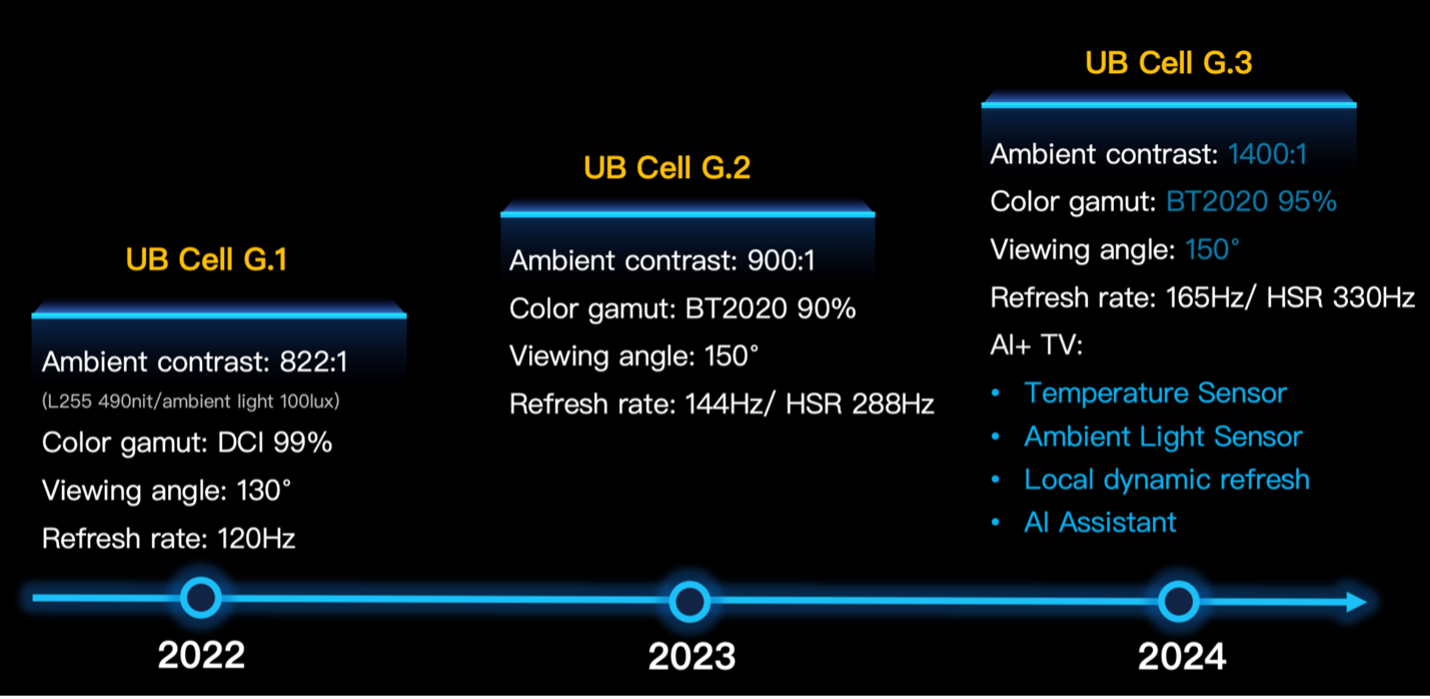

What is UB Cell Gen.3 Display Technology
UB Cell Gen. 3 refers to the third-generation UB Cell display technology developed by BOE (Beijing Optoelectronics Technology). Based on BOE's advanced ADS Pro LCD display technology, it integrates AI intelligent control to achieve supreme picture quality.
Display Performance
- Ultra-high Color Gamut and Full Viewing Angle Without Color Shifting: Utilizing SAP pixel design and STW Viewing Angle Compensation Technology 2.0, the display transmittance rate is increased by 30%, with a color gamut coverage reaching 95% BT.2020. The ultra-wide viewing angle screen presents rich colors and high color accuracy, enabling family members to enjoy consistent exceptional viewing experiences from any angle.
- High Ambient Perception Contrast Ratio: Using low-scattering and low-reflection materials, screen reflectivity is controlled below 0.7%. When ambient brightness is 100 Lux (similar to a living room) and display brightness is 500 nits, the UB Cell's ambient perceived contrast ratio reaches 1400:1, significantly higher than the approximately 400:1 ratio of conventional OLED TVs. This allows users to easily perceive delicate light and shadow details.
- High Refresh Rate: Combining EPQ image quality enhancement technology with HSR refresh rate doubling technology, it can stably output high-resolution, high-refresh-rate videos at 4K 120Hz/HSR 240Hz (with a maximum of 4K 165Hz/HSR 330Hz). This meets the demanding requirements for image quality and display smoothness in shooting, racing, and other 3A games.
- Excellent Contrast Ratio: Achieves a static contrast ratio of 3,000,000:1, delivering deep blacks and rich details in dark scenes for a more immersive visual experience.
AI Intelligent Control
- Light and Temperature Sensors: The display integrates six light sensors and one temperature sensor to dynamically monitor environmental brightness, color temperature, panel temperature, and indoor ambient temperature. Based on real-time data and application modes such as TV, movie, and gallery, the TV dynamically adjusts backlight brightness, color temperature, circuit settings, driving voltage, and other parameters to ensure optimal visual quality.
- Dynamic Local Refresh: The display panel hardware supports the "Dynamic Local Refresh (DLR)" function. Depending on the content displayed, it can dynamically adjust the refresh rate of any position and area on the panel. For example, during video playback, the image area maintains normal refresh rates while black areas are adjusted to 1Hz, reducing display power consumption by up to 50%.
- Voice Interaction: Equipped with the "BOE AI TV Digital Assistant" voice interaction control system, which uses BOE's self-developed end-side offline speech recognition algorithms and is trained with the ASR contextual training model. The speech recognition correction rate reaches 95%, with a response latency as low as 50 milliseconds. Users can switch display modes, obtain sensor data, interact with the environment, and read power consumption and panel parameter information through voice commands.
Other Advanced Innovations
- Health Mode 2.0: Integrates hardware, algorithms, and user experience to achieve three-level eye protection—foundational hardware-level eye protection, AI-aware intelligent eye protection, and self-regulated user habits—providing comprehensive care for users' eye health.
- Multi-Screen Interaction: Supports wireless connections with mobile devices, tablets, laptops, and other gadgets. Content can be mirrored on the TV screen, with a low latency of ≤80ms. It also supports slot mapping for devices, enabling one-click projection via voice control.
Applications of UB Cell Gen.3
Premium Gaming Monitors
- 3000:1 Native Contrast Ratio: Delivers deeper blacks and vibrant whites, critical for immersive gaming.
- Adaptive 48Hz–120Hz Refresh Rate: Eliminates motion blur and screen tearing, favored by competitive gamers.
- Flicker-Free Design: Reduces eye strain during extended sessions, aligning with G-Sync standards.
- Monitor Displays: At ICDT 2025, BOE introduced a 31.5-inch UB Cell monitor with 3000:1 contrast ratio, DCI-P3 99% color gamut coverage, and a 1.6% ultra-low reflectivity. Paired with over 2000 glass-based MLED backlight zones, it achieves 1600nit brightness, revolutionizing the visual quality of LCD monitors and meeting professional users' demands for high image quality.
Smart Home & IoT Devices
- AI-Driven Ambient Adaptation: Automatically adjusts brightness and color temperature based on room lighting.
- Low Reflectivity (<0.9%): Maintains clarity in bright environments, ideal for smart displays and voice-controlled hubs.
- TV Displays: In May 2023, BOE unveiled an 110-inch 4K 144Hz UB Cell display at SID Display Week. In 2024, BOE launched the industry's first 55-inch 4K UB Cell G.3 AI TV solution. At CES 2025, BOE showcased a 55-inch 4K TV display featuring UB Cell Gen3 AI technology. These products offer ultra-high color gamut, full viewing angles without color shifting, high contrast ratios, and high ambient perception contrast ratios, driving the TV display industry toward higher performance and premiumization.
- Notebook Displays: At CES 2024, BOE displayed a 16-inch UB Cell notebook screen with 3000:1 contrast ratio, DCI-P3 100% color gamut coverage, and 0.7% ultra-low reflectivity. It also supports 240Hz high refresh rates and achieves a 97% screen-to-body ratio through narrow bezel design. This optimizes visual effects and operational experience for notebook users.
Automotive Displays
- Wide Viewing Angles (178°): Ensures readability for drivers and passengers from any seat position.
- Thermal Resilience: AI monitors panel temperature to prevent overheating, crucial for safety-critical dashboards.
Professional & Medical Screens
- 95% BT2020 Color Gamut: Provides surgical precision for photo/video editing and diagnostic imaging.
- Energy Efficiency: Cuts power consumption by 50% traditional displays, reducing operational costs.
Market Impact of UB Cell Gen.3
- Driving Growth in Consumer Electronics
- The gaming monitor market alone is projected to grow at 12% CAGR(2024–2030), fueled by demand for high-refresh-rate, low-latency displays. UB Cell Gen.3’s specs position it as a leader in this segment.
- 65% of U.S. adultsengage in gaming (source: Fortune Business Insights), creating massive demand for premium screens.
- Sustainability Leadership
- UB Cell Gen.3’s AI algorithms reduce energy use by 50%, aligning with global carbon-reduction goals. BOE’s 2024 sustainability report highlights 40% lower CO2 emissionsin optimized setups.
- Competitive Edge Over OLED
- Superior Outdoor Performance: Reflects 90% less lightthan OLED, making it ideal for automotive and outdoor digital signage.
- Cost Efficiency: Longer lifespan and lower power consumption give UB Cell Gen.3 an edge in commercial deployments.
- Enterprise Adoption
- Companies like Nielsen IQand Hurom report 15–20% cost savings after integrating BOE’s displays, citing durability and energy efficiency.
During SID Display Week 2024, the first product equipped with the UB Cell G.3 AI TV solution—the 55-inch 4K UB Cell G.3 AI TV—was unveiled, marking BOE's entry into the AI-driven era of premium TV solutions. At CES 2025, BOE showcased a 55-inch 4K TV display with UB Cell Gen 3 AI technology, offering an ultra-high color gamut, full viewing angles without color shifting, 3000:1 contrast ratio, and high ambient perception contrast ratio. It also featured low reflectivity and the industry's first integration of a PNL integrated temperature sensor and six ambient light sensors. On the application side, BOE's UB Cell Gen3 AI TV solution provides a social hub for family entertainment and serves as a key human-computer interaction interface in smart homes. In the future, BOE will focus on application scenarios, empower more display terminals with "AI+" and "Sensor+," and deliver a super AI visual experience to hundreds of millions of consumers worldwide.
Why UB Cell Gen.3 Dominates?
Key Specifications:
- Technical Superiority: Combines 3000:1 contrast, BT2020 color, and AI-driven optimization.
- Versatility: Adapts to gaming, automotive, healthcare, and smart environments.
- Sustainability: Meets global energy standards while cutting operational costs.
UB Cell Gen.3 employs neural networks to analyze ambient conditions and usage patterns, autonomously calibrating parameters like TFT voltage and liquid crystal alignment. This reduces motion blur and energy waste, aligning with sustainability goals—AI integration slashes CO2 emissions by 40% in optimized scenarios (source: BOE Sustainability Report 2024).
UB Cell Gen.3 excels in challenging lighting conditions, reflecting <0.9% ambient light to minimize glare. Its optical phase stabilization maintains color fidelity across 178° viewing angles, outperforming traditional OLED screens in outdoor readability. AI-driven thermal management prevents overheating, while adaptive backlighting ensures consistent clarity in sunlit or dim environments.
Key Specifications:
|
Feature |
UB Cell Gen.3 |
OLED |
|
Contrast Ratio |
3000:1 |
Lower than UB Cell Gen.3 |
|
Surface Reflectivity |
0.9% |
Higher |
|
Color Accuracy |
95% BT2020 |
Limited at wide angles |
|
Energy Efficiency |
50% savings |
Standard consumption |
Future Outlook
By 2033, the display market is projected to hit $229.6 billion (source: Market Research Future), fueled by demand for AI-enhanced screens. Innovations like UB Cell Gen.3 and ADS Pro epitomize the shift toward adaptive, eco-friendly displays, aligning with the “Display Everywhere” vision.
In Summary，UB Cell Gen.3 exemplifies how AI transforms displays into responsive, efficient tools. Whether for gaming marathons, smart homes, or corporate efficiency, these technologies set benchmarks in clarity, sustainability, and adaptability.
